The Position at Index Request

The purpose of this functionality is to provide the position id for a particular provider, account, and optionally an instrument and position type at a certain index. The range of the index goes from 1 to the total number of positions. This can be used together with the number of positions request.

The positionAtIndex format

The positionAtIndex request receives a total of 5 parameters which will filter the searched position id.
The parameters are separated by a vertical bar ‘|’ character. Parameters in [ ] can be omitted.
positionAtIndex( Provider | Account | [Instrument] | [PositionType] | Index )

The standard call of the RTD function which uses positionAtIndex:

=RTD("qst.rtd", "", "positionAtIndex( Provider | Account | [Instrument] | [PositionType] | Index )")

The positionAtIndex parameters are explained below:

  • Provider – the order entry provider, ex. PTS, QOR

  • Account – filter by account number

  • Instrument – [optional] filter by a specific instrument, if missing it will filter by provider and account

  • PositionType – [optional] filter by the type of positions: ALL (open positions and fills), NET (net positions), OPEN (only open positions), FILLS (only fills); if missing it will be equivalent to all open positions and fills

  • Index - the index selected, the range of the index starts from 1 up to the total number of positions filtered

Note

The order of these parameters is mandatory, ex. Parameter 1, Provider, cannot be switched with parameter 2, Account. The parameters are not case sensitive.

Note

When the request is used for a type of positions, ex. fills, the index range will correspond to the total number of fills. Ex. if there are 10 positions where only 4 are fills and the rest are open positions, when the FILLS parameter is used, the index range is 1 to 4. If ALL is used (open positions + fills), then the index range becomes 1 to 10.

Example of positionAtIndex request

After selecting any desired cell from the Excel spreadsheet, copy paste the RTD function in the formula bar, having replaced the RTD parameters accordingly. Or enter the parameters separately and combine them for the RTD request.

In the examples below, the positionAtIndex parameters are passed to the main request as a concatenation function, ex: =RTD(“qst.rtd”,””,”positionAtIndex(” & CONCAT(B1,”|”,B2,”|”,B3,”|”,B4,”|”,A12) & “)”), where CONCAT(B1,”|”,B2,”|”,B3,”|”,B4,”|”,A12) would be equivalent to the string PTS|886||NET|4.

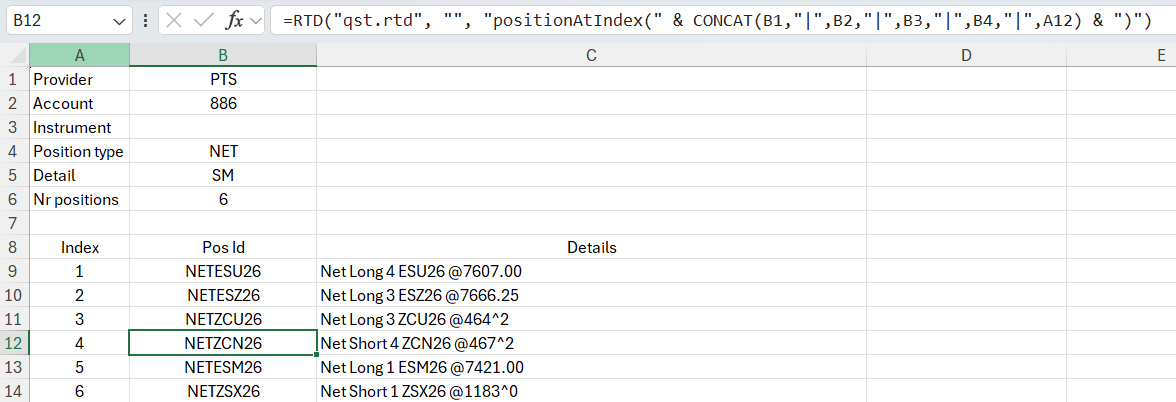

  1. Requesting the net position id at index 4 from account 886:

=RTD("qst.rtd", "", "positionAtIndex( PTS | 886 | | NET | 4 )")
../_images/positionAtIndex_net.png

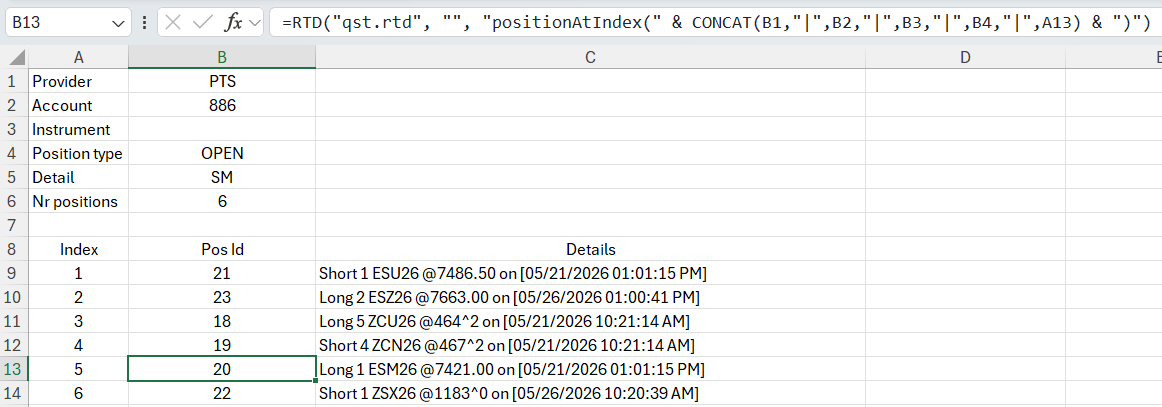

  1. Requesting the open position at index 5 from account 886:

=RTD("qst.rtd", "", "positionAtIndex( PTS | 886 | | OPEN | 5 )")
../_images/positionAtIndex_open.png

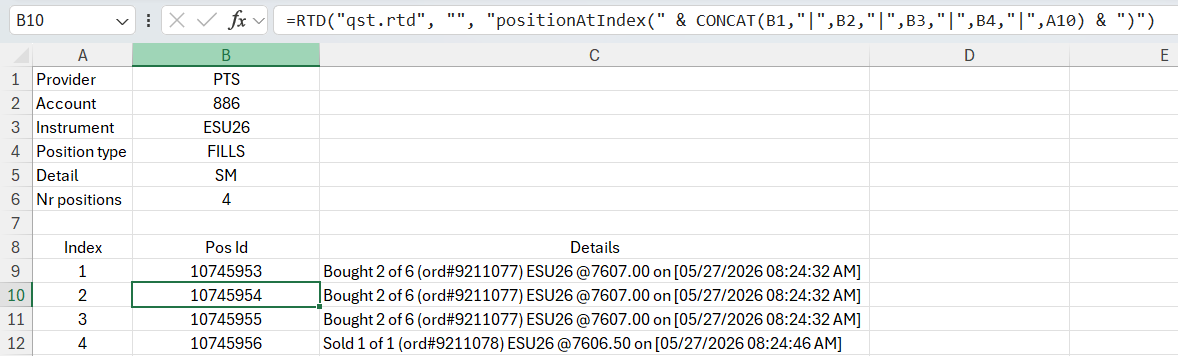

  1. Requesting the fill at index 2 from account 886 and instrument ESU26:

=RTD("qst.rtd", "", "positionAtIndex( PTS | 886 | ESU26 | FILLS | 2 )")
../_images/positionAtIndex_fills.png

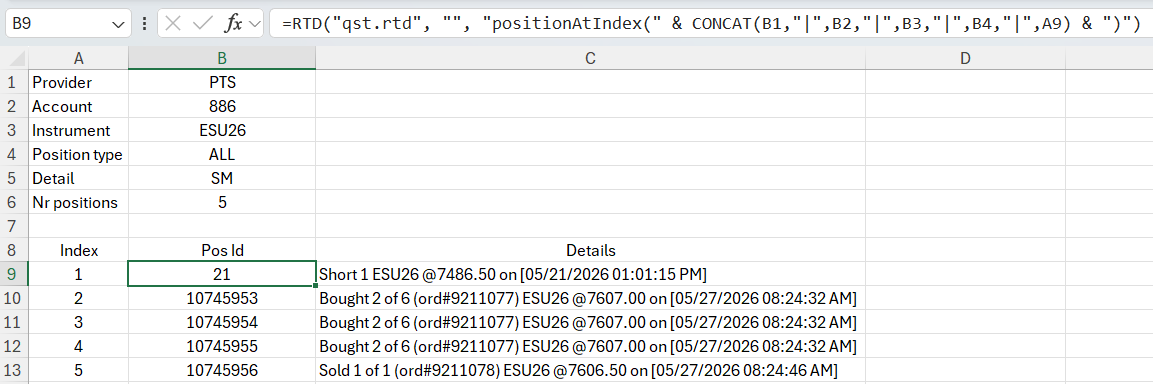

  1. Requesting the position id at index 1 from account 886 and instrument ESU26 using concatenation:

=RTD("qst.rtd", "", "positionAtIndex( PTS | 886 | ESU26 | ALL | 1 )")
../_images/positionAtIndex_all.png
