The Chart Request

The purpose of the chart request is to provide a specific market data information from a chart on an instrument, for example a quote price or an indicator value.

The chart format

The chart request must be formed by three fields: field, contract symbol, chart resolution and trading date/number of bars in the past.
The field must be placed inside single quotation marks ‘’, followed by an exclamation mark ‘!’. Next, the symbol is separated from the chart resolution by an underscore character ‘_’. At the end, the trading date/number of bars in the past, is placed inside round brackets ().
'Field'!Symbol_ChartResolution(Date)
The Field parameter can represent a specific market data information requested for an instrument or an indicator’s value or a component of an indicator.
When an indicator component is requested, the indicator and indicator component must be separated by the dot ‘.’ character.
Possible Field values:
  • op – Open

  • hg – High

  • lw – Low

  • ls – Last

  • ps - Previous Settlement

  • vl – Volume

  • oi – Open Interest

  • ts – Timestamp Update

  • Indicator or Indicator.IndicatorComponent - the indicator value or a specific component of the indicator when the indicator is split into components, e.g. ‘ALGT.Alligators Jaw’, where ALGT is the Alligator indicator, and Alligators Jaw is one of the 3 components of the indicator.

The Symbol parameter is the contract symbol used in QST for different types of instruments (futures, options, spreads).

Note

For futures, you can use either the standard symbol, e.g. EGCV20, or the corresponding perpetual symbol, e.g. EGC1- .

Likewise, for future spreads, the standard symbol can be used, e.g. ZCZ20:H21[SP], or the corresponding perpetual symbol, e.g. ZC1-:2-[SP] .

While for option instruments, you can either use the actual symbol of the option, e.g. EWZ20C3400 (E-mini S&P End of Month options), or using the underlying symbol instead, e.g. ESZ20{EW}C3400 .

The ChartResolution parameter represents the type of the chart used.
Possible ChartResolution values:
  • Daily

  • Weekly

  • Monthly

  • Quarterly

  • Ticks

  • Volume

  • Price Change

  • Price Range

  • Xminute(s) - e.g. 1minute, 5minutes, 15minutes, 30minutes

  • Xhour(s) - e.g. 1hour, 2hours, 6hours

The Date parameter can represent either the trading date from which the market data information or indicator value is requested from or the number of bars ago.
Possible Date formats:
  • yyyy-MM-dd (only for daily charts)

  • MM-dd-yyyy (only for daily charts)

  • a single positive value which can represent the number of trading days ago (not calendar) since the present time (for daily charts) or the number of bars in the past (e.g. intraday charts).

Note

You can only request one specific piece of information per chart request, e.g. you can request the high price or the low price but not both in the same chart request. Likewise, you can only request that information from a specific date/bar per chart request.

Examples of chart request

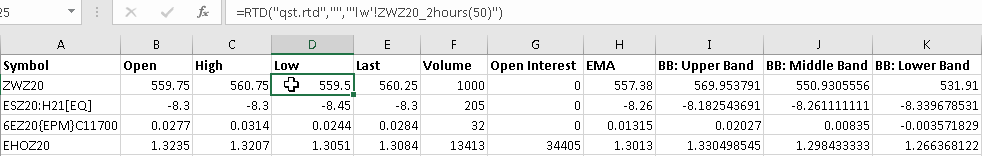

  1. Requesting the low price from a 2-hourly chart on ZWZ20 (CBOT Wheat) future, from 50 2-hour bars ago:

=RTD("qst.rtd","","'lw'!ZWZ20_2hours(50)")
../_images/chart_hourly.png

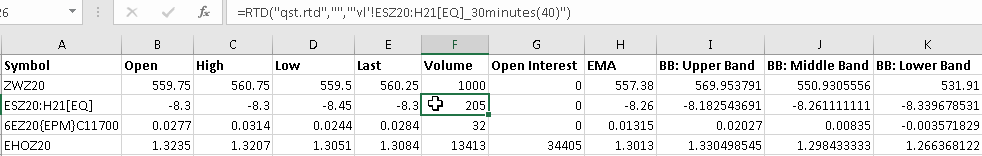

  1. Requesting the volume, from a 30 minutes intraday chart on ESZ20:H21[EQ] (CME E-mini S&P) future spread, from 40 30-minute bars ago:

=RTD("qst.rtd","","'vl'!ESZ20:H21[EQ]_30minutes(40)")
../_images/chart_minutely.png

  1. Requesting the Exponential Moving Average indicator value, from a Weekly chart on 6EZ20{EPM}C11700 (CME EUR/USD Premium) European option, from 8 weekly bars ago:

=RTD("qst.rtd","","'EMA'!6EZ20{EPM}C11700_Weekly(8)")
../_images/chart_weekly.png

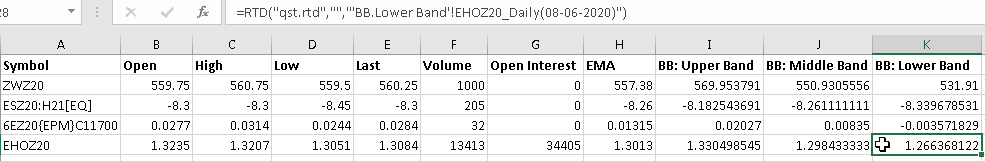

  1. Requesting the Lower Band component value of the Bollinger Bands indicator, from a Daily chart on EHOZ20 (NYMEX NY Harbor ULSD) future, on the trading date 08/06/2020:

=RTD("qst.rtd","","'BB.Lower Band'!EHOZ20_Daily(08-06-2020)")
../_images/chart_daily.png
