The Cancel Order Request

The purpose of this functionality is to provide the client, a way to cancel QST orders via Excel.

The reqCancelOrder format

The reqCancelOrder request receives a total of 4 parameters which represent the order cancelling details.
If some parameters are not used, e.g. Confirmation Type, an empty string will be used instead.
The parameters are separated by a vertical bar ‘|’ character.
reqCancelOrder( Provider | Account | OrderId | ConfirmationType)

The standard call of the RTD function which uses reqCancelOrder:

=RTD(“qst.rtd”, “”, “reqCancelOrder( Provider | Account | OrderId | ConfirmationType )”)

The reqCancelOrder parameters are explained below:

  • Provider – the order entry provider, ex. PTS, QOR

  • Account – account on which the order will be placed (QST needs to be connected to this account)

  • OrderId – the id of the order to be canceled

  • ConfirmationType – if this parameter is missing it will try to cancel the order immediately; If the value ON is provided, a cancel order confirmation dialog will be launched in QST to confirm the cancellation;

Note

The order of these parameters is mandatory, ex. Parameter 1, Provider, cannot be switched with parameter 2, Account.

Example of reqCancelOrder request

After selecting any desired cell from the Excel spreadsheet, copy paste the RTD function in the formula bar, having replaced the RTD parameters accordingly.

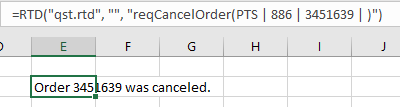

Cancelling an order with id 3451639:

*reqCancelOrder( PTS | 886 | 3451639 | )*
../_images/cancelOrder_1.png
